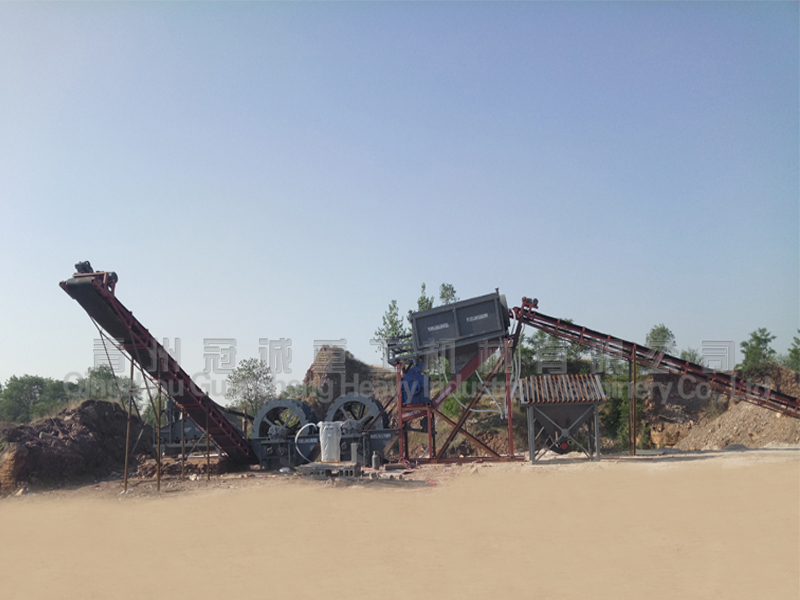

Sand crushing making and washing machine
Technical process
Raw material get into feed hopper then into transport conveyor well distributed with work of vibration feeder,then into trommel screen to be classified into 2 size:the big(coarse) material and fine size material:
The big size one into one set of sand making machine(Impact type)to be crushing the crushed material with fine size material together into 2set of wheel bucket type sand washer for the 2nd time washing,then final production get and transported to destination by conveyor;
The fine sand discharged with scrap water into mineral box through the pipe by wheel bucket sand washer,then to be feed into fine sand recover machine by sand pump,the final production clean sand get and transported to destination by transport conveyor.
Detail parameter
|
Production Name |
Specification |
Quantity |
Power |
Unit price |
Total price |
Remark |
|
Feed hopper |
3000*2200 |
1set |
0.37 |
|||
|
|
|
1pcs |
11 |
|||
|
|
Inner diameter 1.3m,outer diameter 1.6m,screen mesh 3m |
1pcs |
11 |
|||
|
Wheel bucket sand washer |
Ø2800*1800 |
2set |
7.5*2 |
|||
|
Fine sand recover machine |
1500*2750 ; 2.2KW*2 |
1set |
26.4 |
|||
|
Final production transport conveyor |
Belt width 800m,pole length about 15m |
1pcs |
11 |
|||
|
|
800*1200 |
1set |
110 |
|||
|
Water pump |
1pcs |
7.5 |
||||
|
|
Including the electric wire excluding the cable |
1pcs |
- |
|||
|
Total power |
184.77KW |
|||||
