Capacity 50tph mobile crushing station

Mobile crushing plant

Mobile crushing plant

Gravel sand making machine introduction

This movable crushing and screening station is to classify the material into 4sizes as stone>20mm,gravel 10-20mm,5-10mm,,sand 0-5mm,it's also one kind of fine gravel sand making machine for construction use,the capacity is 50ton/h,it’s designed by Qingzhou Guancheng heavy industrial machinery co.,ltd,base plate made from 17.5m semi-trailer base plate,the advantage:

1.it can be moved or driven by trailer engine easily,and another set of driving and directions system to be additional,it can be driven by another car or trailer.

2. The feeding with vibrating feeder,which feeds well distributed and high efficiently.

3.Vibrating screen with 3layer type,the first layer is using 25# round steel,2ndand 3rd layer with polyurethane screen mesh.

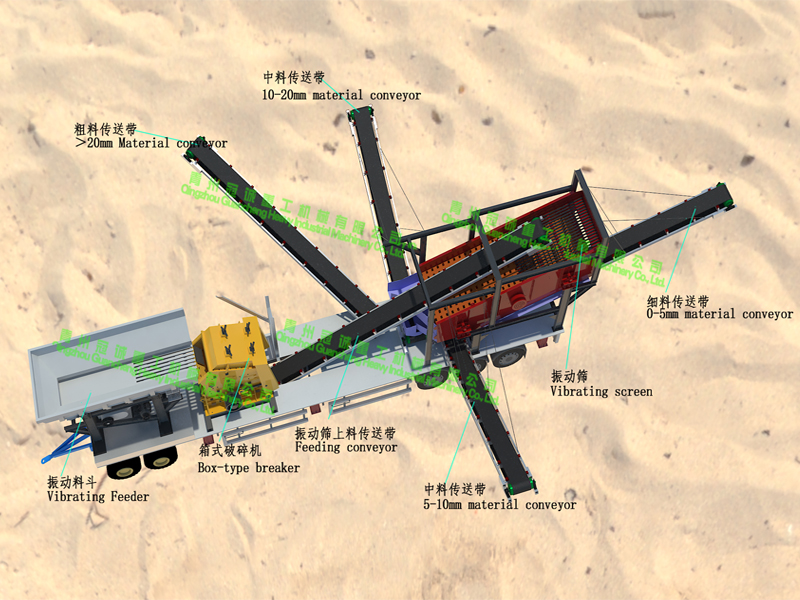

Gravel sand making machine technical process

Raw material into shaking feeder then well distributed into hammer crusher to be crushed,then classified by vibrating screen into 4size:the big size>20mm,the medium10-20mm,the small 5-10mm,the smallest<5mm

The one>20mm from transport conveyor to destination;

The one in size10-20mm transported by conveyor to destination;

The one in size 5-10mm transported to destination;

The one in size of 0-5mm transported to destination.

Gravel sand making machine detail parameter

Production

Specification

Quantity

Power

Unit price

Total price

Remark

Driving system

  □  Trailer engine
□Additional driving and directions system

1pcs











Base plate

Made from 17.5m semi trailer

1pcs

-





Can be with mechanical or hydraulic legs



Shaking feeder

4200*1100

1pcs

15







Vibrating screen

6000*2100
2floor vibrating screen
1st with 25#round steel
2nd with polyurethane screen mesh
3rd with polyurethane screen mesh

1pcs

30







Transport conveyor

Belt width800mm,pole length 13m

1pcs

11





Feeding to vibrating screen

Transport conveyor

Pole width 600mm,pole length 9m

1pcs

5.5





>20mm material
transport conveyor

Transport conveyor

Pole width 600mm,pole length 10m

1pcs

5.5





10-20mm transport conveyor

Transport conveyor

Pole width 600mm,pole length 10m

1pcs

5.5





5-10mm transport conveyor

Transport conveyor

Pole width 600mm,pole length10m

1pcs

5.5





<5mm transport conveyor

Box-type breaker

1000*1200

1pcs

110









Water pump



1set

7.5









Electric box

Switch Brand:Delixi

1pcs

-





Excluding the cable

Total power

195.5KW
