Dredging depth 15-18m gold&diamond mining machinery

 gold&diamond dredging boat

Gold&diamond dredger brief introduction
This set of gold mining macihnery dredging depth15-18m capacity 100-150ton/hour gold&diamond separating plant is customized for customer.
High recovery with the gold particle(including invisible gold),this machine with high technology,new design and low maintenance.The PLC control automatic discharge gold concentrator is our main production,it can work in high recovery and reduce human work.

The horizontal gold concentrator of gold&diamond dredger


Horizontal gold concentrator

Vertical gold concentrator

The system

PLC conctrol

Handling control

Discharging

Automatic discharge

Handling discharge

The shaft

Horizontal(shaft 2sides fixed)

Vertical(buttom sidefixting)

Working

Long(working life)

Normal(working life)

The installation

No need seeking ground level

Need seeking ground level

Feeding

Sand pump(easily control the feeding concentration
30%)

By gravity feeding(cann’t control the feeding concentration)

Recovery

Above 90%

70%

Application field

Good peformance in jolting surrounding such as mobile
gold separating car,gold dredger etc

Cann’t work in jolting surroundings.

Biggest capacity model

1200# or bigger capacity need  customized

80#

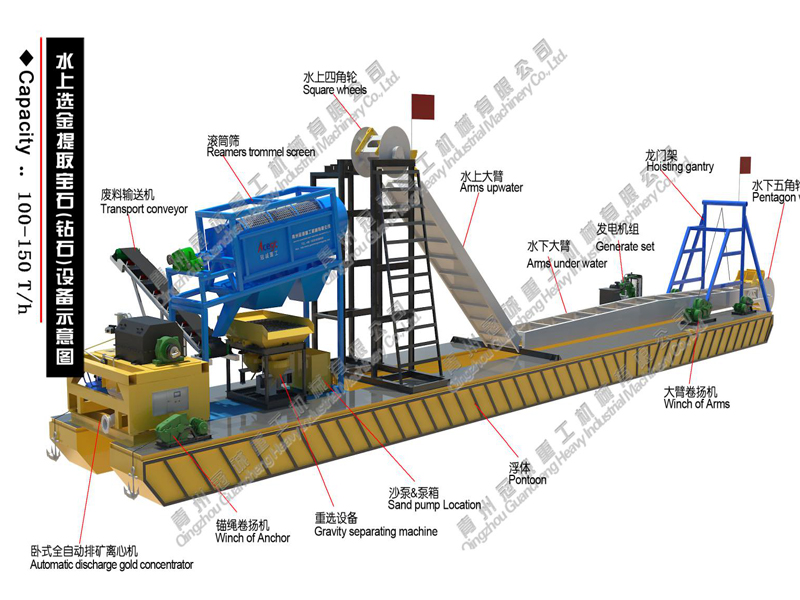

Gold&diamond dredger detail parameter

Production Name

Specification

Power

Quantity

Unit price

Total price

Remark

Pontoon

LOA(length):35.6m,single width:1.8mHeight:1.02m

-

1set







Hoisting gantry



-

1pcs







Bucket system

Bucket

Model70#

37

1set





Chain:164pcs,about 40KG/pcs,single thickness 3CM,total thickness 9CM
Bucket:82pcs,about 95KG/pcs

Chain

Material:Cast steel

Big Arms

Total length 29.5m,2section

Pentagon wheel



Square wheeel



Holding frames

Material:20#H steel

The engine

Reducer:850#
Motor:37KW

Reamertrommel screen

Trommel screen

Inner diameter 1.3m,outer diameter 1.6m,screen mesh 3m

11

1set







Feed hopper

With 8mm thickness steel

Holding frames

15#square pipes

Transport conveyor



5.5

1pcs







Winch of Arms



15

1pcs







Main Anchor



5.5

1pcs







Sheet Anchor



3KW*4

4pcs







Water Pump



7.5*2

2set







The Gravity separating machine



7.5

1set







Gold concentrator

80#Horizontal automatic discharge

10.5

1set





PLC control

Centrifugal pump



5.5

1set







Sand pump and location box

Feeding for gold concentrator,4inch

11

1set
