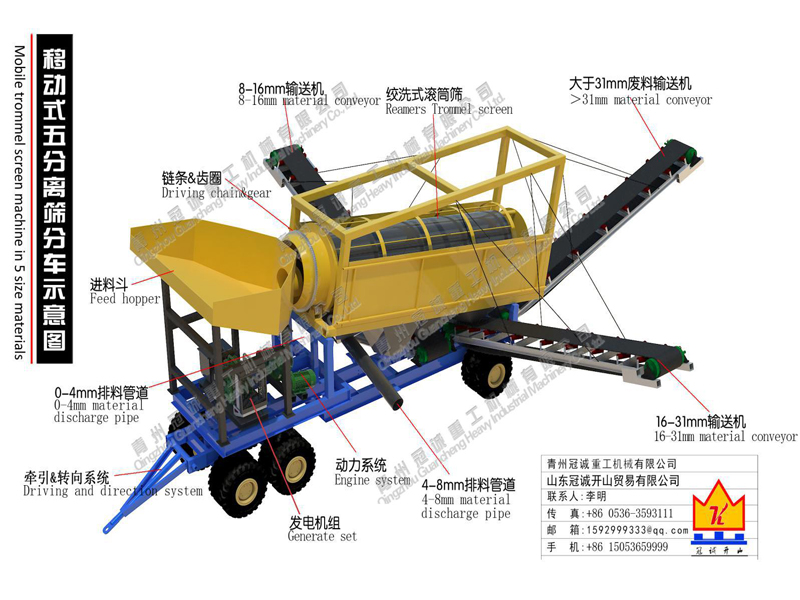

Mobile trommel screen mining classifying machine

Brief Introduction

This set of mobile screening machine in 5 size materials is according to customer’s requirement,designed and manufactured by our company;

The design of the equipment with new and reasonable and compact, the generate set is located on the truck chassis, with highly efficient driving and direction system, which can be easily moved to destination with driving car, in which the screening system with new type of reamers screening technology, the advantages are as follows:

The trommel screen with double chain driving design, the kinetic energy transfer uniform,transfer efficiency high,electricity consumption can be saved effectively;

The inner sieve is made by punching process, which contains reamers covering  all over from the head to end, which can fully wring the material and getting rid off the clay, which greatly improves the screening efficiency;

The water supplying system with central and sides water supplying,the central can swilling big size material;

The sides water supplying system to swill the screen mesh and can effectively prevent it from being plugged.

The feeding with high pressure water swilling the material which will be well distributed into trommel screen,the discharging with 3pcs transport conveyor and 2 pcs Ø273 discharging pipe.
Technical parameter
