Capacity 5-10ton/hour ball mill knelson centrifuge gold concentrator mach

Introduction

This set of specialized rock mine movable gold separtor,it’s customized using for rock mine material,the advantage:

1.Base plate design from heavy trailer with driving bar and direction system,generator set,it can be easiler moved or transported.

2.The shaking feeder under feed hopper to prevent clogging of material

3.The concentrator sysytem we use horizontal auto discharge knelson centrifuge concentrator,separating and easy to operate and discharging auto controlled with PLC druing which 2nd time the scrap material’s recovery by amalgamating board slucie.

Technical process

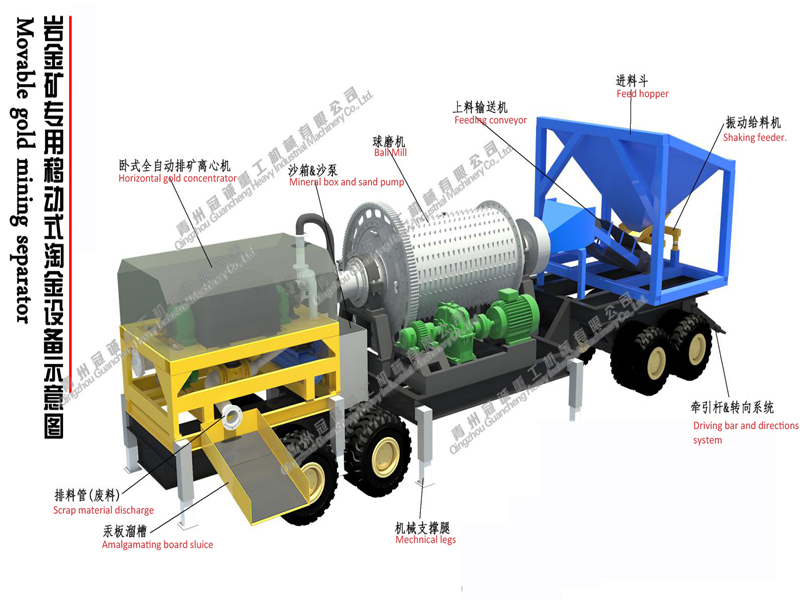

The material getting into feed hopper by excavator or other machines,the the shaking feeder can make material well distributed onto conveyor and then be transporting into ball mill,the getting into horizontal auto discharge knelson series centrifuge concentrator by sand pump in sand box,then concentrate get and scrap material into amalgamating board sluice to be recovered(The horizontal type gold concentrator instead of vertical type which can be working only on ground level provide good performance as a unit of the car)

Detail parameter

Capacity：5-10ton/hour

Outlet size:17.5*3*4.2m（L*W*H）

Length of base plate：17.5m

Ball mill feeding size：0-25mm

Ball mill:

1500*4500 capacity:5-11T/H,power:110kw

Horizontal auto discharge  knelson centrifuge concentrator:60# power:6.05KW

Generator set: advise to use 150kw 1set

Driving speed:advise to be less than 15km/h
