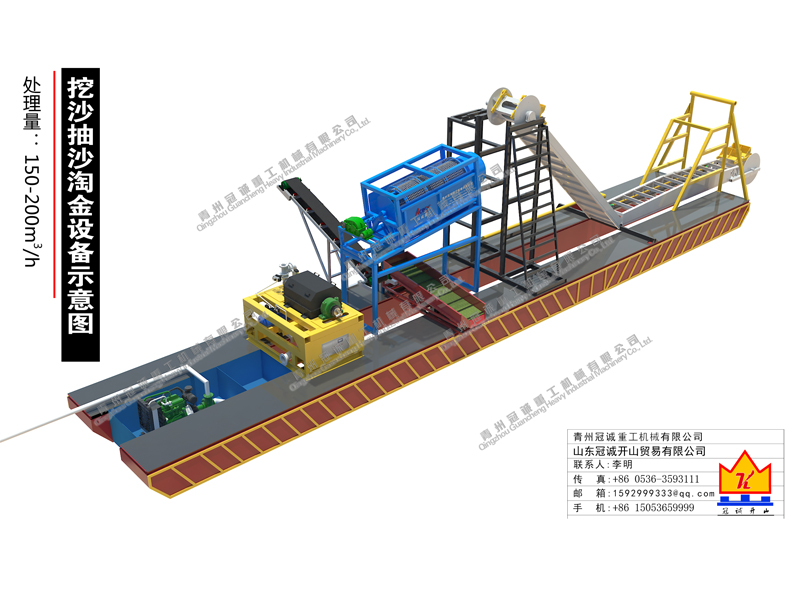

Work capacity 150-200m3/h dredging depth8-10m bucket wheel gold dredger

gold dredger

1.Introdcution

The gold separating system with shaking sluice and Knelson series centrifuge gold cocentrator for a high recovery,the carpet of shaking sluice with Mitsubishi brand with long work life;

The Knelson series centrifuge gold concentrator with automatic discharge 1200#,big work capacity,PLC control, with high technology and little human source.

2.Detail parameter

Production Name

Specification

Power

Quantity

Unit price

Total price

Remark

Pontoon

Total length33m,single width 1.8m,height 1.4m,deck board checkered floor plate 4mm,side board 6mm

-

1set

If need manufacturing on worksite are well appreciated.

Hoist gantry

-

1set

Bucket system

Bucket

Model 100#

45

1set

Chain:106 pcs 73kg/pc,single thickness 5cm,total 15cm,
Bucket:53pcs,140kg/pc

Chain

Cast steel

Big arms

Length 20m,in 2pcs

Pentagon wheel

Square wheel

Holding frames

20# H steel

Power

Reducer:1000#
Motor:45KW

Trommel screen

Trommel

Inner dia.:1.3m outer dia.:1.6m,screen mesh 3m

15

1set

hopper

8mm thickness steel

Holding frame

15# square steel

Scrap transport conveyor

5.5

1set

Shaking sluice

2.2KW

1set

Big arms winch

15

1set

Main anchor

5.5

1set

Sheet anchor

3KW*4

4sets

Water pump

7.5

2pcs

Sand suction pump

6inch

22KW

1pcs

Centrifugal concentrator

1200#horizontal concentrator

21.5

1set

PLC control

Centrifugal pump

5.5

1pcs

Sand pump and pump box

Feeding for centrifugal concentrator 4inch

11

1pcs

Pump location

Length 6m

1pcs

Diesel pump

Diesel model 6100

1pcs

Total power

167.7KW
