Work capacity100-120tph sand production line

sand production line

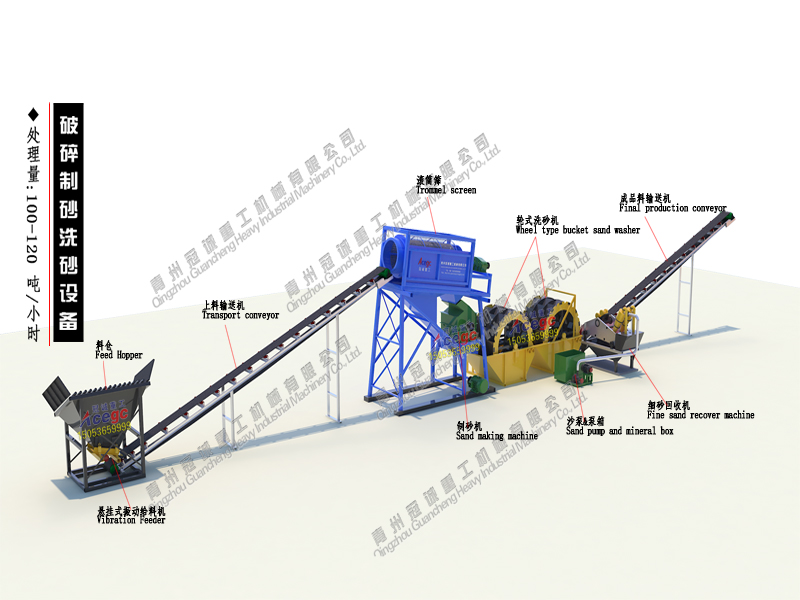

Sand making machine production line technical process

Raw material get into feed hopper then into transport conveyor well distributed with work of vibration feeder,then into trommel screen to be classified into 2 size:the big(coarse) material and fine size material:

The big size one into one set of sand making machine(Impact type)to be crushing the crushed material with fine size material together into 2set of wheel bucket type sand washer for the 2nd time washing,then final production get and transported to destination by conveyor;

The fine sand discharged with scrap water into mineral box through the pipe by wheel bucket sand washer,then to be feed into fine sand recover machine by sand pump,the final production clean sand get and transported to destination by transport conveyor.
Sand making machine production line of detail parameter

Production Name

Specification

Quantity

Power

Unit price

Total price

Remark

Feed hopper

3000*2200

1set

0.37


Transport conveyor


Belt width 800m,length about 15m

1pcs

11


Trommel screen

Inner diameter 1.3m,outer diameter 1.6m,screen mesh 3m

1pcs

11

Wheel bucket sand washer

Ø2800*1800

2set

7.5*2

Fine sand recover machine

1500*2750 ; 2.2KW*2
Doublet hydrocyclone
6inch sand pump+22motor+mineral box

1set

26.4

Final production transport conveyor

Belt width 800m,pole length about 15m

1pcs

11


Impact sand making machine

800*1200

1set

110

Water pump

1pcs

7.5


Electric box

Including the electric wire excluding the cable

1pcs

-

Total power

184.77KW
