Dredging deptn 15m work capacity 60-80m3/h bucket chain gold dredger

Gold mining machinery technical process

The material getting into bucket and then into screen classifying the big stone to be get rid and the gold concentrate to be collect by gold sluice.

If need high recovery this mining machinery and dredger can add our horizontal gold concentrator for tinny visible or unvisible gold.

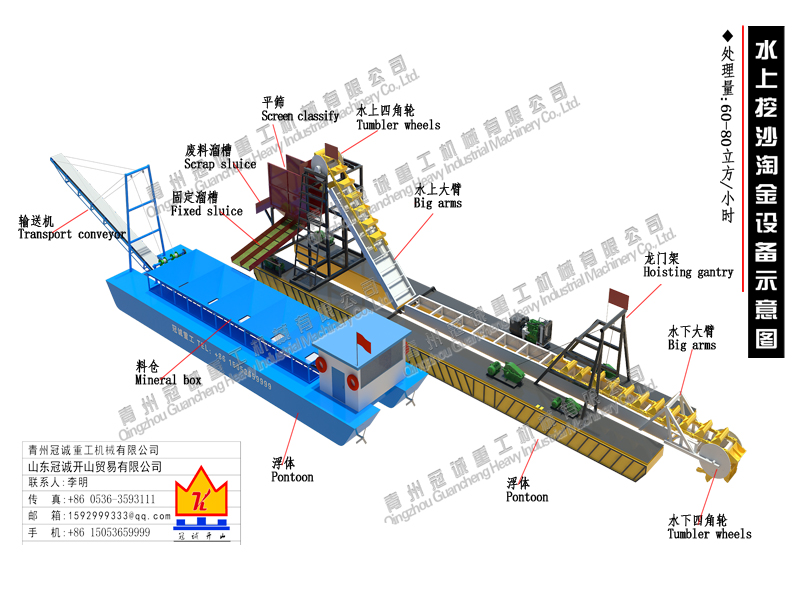

Gold mining machinery detail parameter

Production		Specification	Power	Quantity	Unit price	Total price	Remark
Pontoon		LOA30m,single width1.8m,height1.15m,deck with 4mm checkered board,side board and plate board 6mm	-	1set
Hoisting gantry			-	1pcs
Bucket system	Bucket	Model 60#	-	1set			Chain 160pcs Bucket 80pcs
	Chain	Material:cast steel
	Big arms	29.5m length,2 parts on upon water the other under water
	Tumbler wheels
	Tumbler wheels
	Holding frames	20#H steel
	Engine system	Reducer：850# Diesel engine：4105
Screen classify	Screen	4000*1500mm	2.2KW*2	1set
	The hopper	With 8mm steel
	Holding frames
Scrap sluice			-	1pcs
Fixed sluice		1000*6000mm		2pcs			Including the gold carpet
Big arms winch		400#Reducer	11	1set
Main anchor			5.5	1set
Sheet anchor			3KW*4	4set
Sand pump			7.5	1pcs
Control box			-	1pcs
Generate set		50KW	-	1set
Total power		About 30KW
