Capacity 250-300m3/hour gold separating horizontal gold concentrator plant

gold separating plant

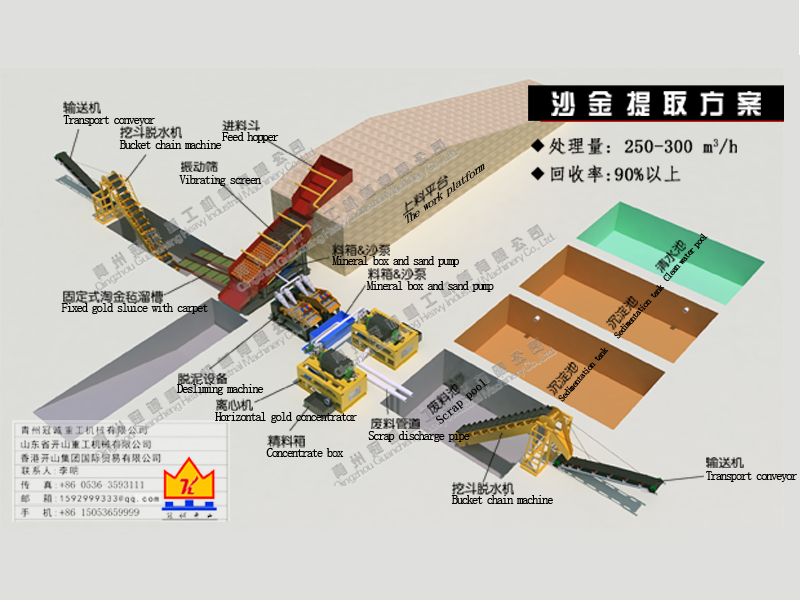

Gold mining machinery technical process

The raw material getting into feed hopper then into gold mining machinery vibrating screen by swilling of high pressure water to be classified into 3size,the big size,the normal size, the small size,the one in big size useless is directly to get rid to scrap pool.

The one in normal price to be recovered by 2fixed gold sluice with carpet,the scrap material to be transported by conveyor after the gold mining machinery bucket chain machine taking water off.

The one in small size get into desliming machine by pumping of 1set 8inch sand pump (its efficiently the recover of gold concentrator by preventing surface gold covered by the muddy mineral),then the clay-off mineral getting into 2set of Knelson series centrifuge horizontal gold concentrator to get concentrate into mineral box,the scrap of Knelson series centrifuge into scrap pool which finally transported to destination by conveyor after the process of taking water off by buck chain machine.

Gold mining machinery detail parameter

Production Name

Specification

Quantity

Power

Remark

Feed hopper

4000*5000mm

1set

-


  Vibrating screen

2100*6000
2layer vibrating screen
1st floor: top 3m with suck rod(to protect screen mesh),the other 3m with polyurethane screen mesh,
The 2nd floor: with polyurethane screen mesh.

1set

18.5

Including base plate,holding frames etc


  Desliming

1500*3500mm  0.55KW

2set

1.1


  Knelson series centrifuge gold concentrator

21.5KW
Horizontal automatic type

2set

43


  Fixed gold sluice

1000*6000mm
With carpet

2set

-

With gold carpet


  Bucket chain machine

60# 11KW

2set

22

Sand pump and mineral box


  8inch

1set

22

Sand pump and mineral box


  6inch

1set

15

Transport conveyor

Belt width 600mm,pole length 6m,3KW

2set

6


  Centrifugal pump

11KW

1set

11


  Water pump

5.5KW

2台

15


  Electric cabinet

1unit

-


  Total power

153.6KW
