Capactiy 30-50tph mobile gold mining machinery trommel screen car

gold mining machinery car

Brief introduction

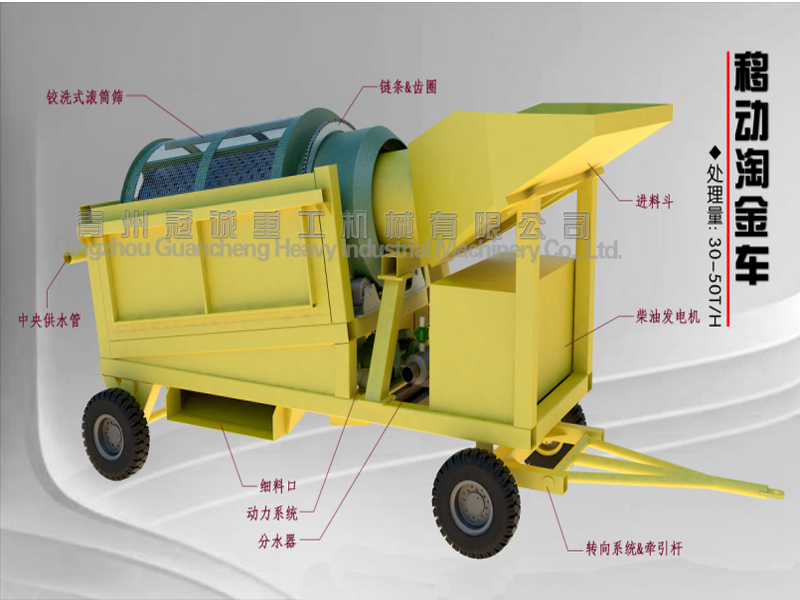

This small mobile gold mining machinery trommel screen car is independently designed, researched and developed by us. It has become mobile advanced equipment through continuous improvement under customer good service, user feedbacks, return visits and other channels.
The mobile gold mining car can use a variety of small excavators, loaders and other feeding methods, suitable for the majority of gold ore, such as sand gold, rock gold tailings, etc.

Features
1, the feeding method can use a small excavator or loader and other means of feeding.

2, flexible and easy to use: the use of steering design can be turned 180 degrees.
3, tires are all solid fork tires, wear-resistant and durable.
4, the roller screen increases the number of internal reamer, an increase of about twice the material screening stroke, greatly increased the hinge washing, screening efficiency.
5, for the water supply system optimization:
The internal flushing of the hopper is responsible for the first flushing of the material and the pushing of the material into the drum screen;
The drum screen is responsible for the main flushing of the material;
Side of the drum screen flush responsible for washing of the external sieve drum fine screen, to prevent plugging holes.
6, a high degree of integration, the mobile gold car integrated hinge washing, screening function, water separator, and diesel generator in one, only the external water supply pipe can work properly.
7, the strong expansion: can be attached to the vibration chute / agitating chute, centrifuges and other equipments to improve the recovery rate.

Technical parameter
Technical parameter:

Processing capacity 30-50 tons / hour
Feeding way it is recommended to use small excavators
Power consumption 2.2Kw
Pump 7.5Kw
Water consumption 50m3/h
Generator: diesel generator 20Kw
Wash screen internal diameter of 1 meter, external diameter of 1.3 meters, net screen length of 1.5 meters
Tires 4 solid tires
Minimum turning radius 3.9 M
